Lattice Infill Kit

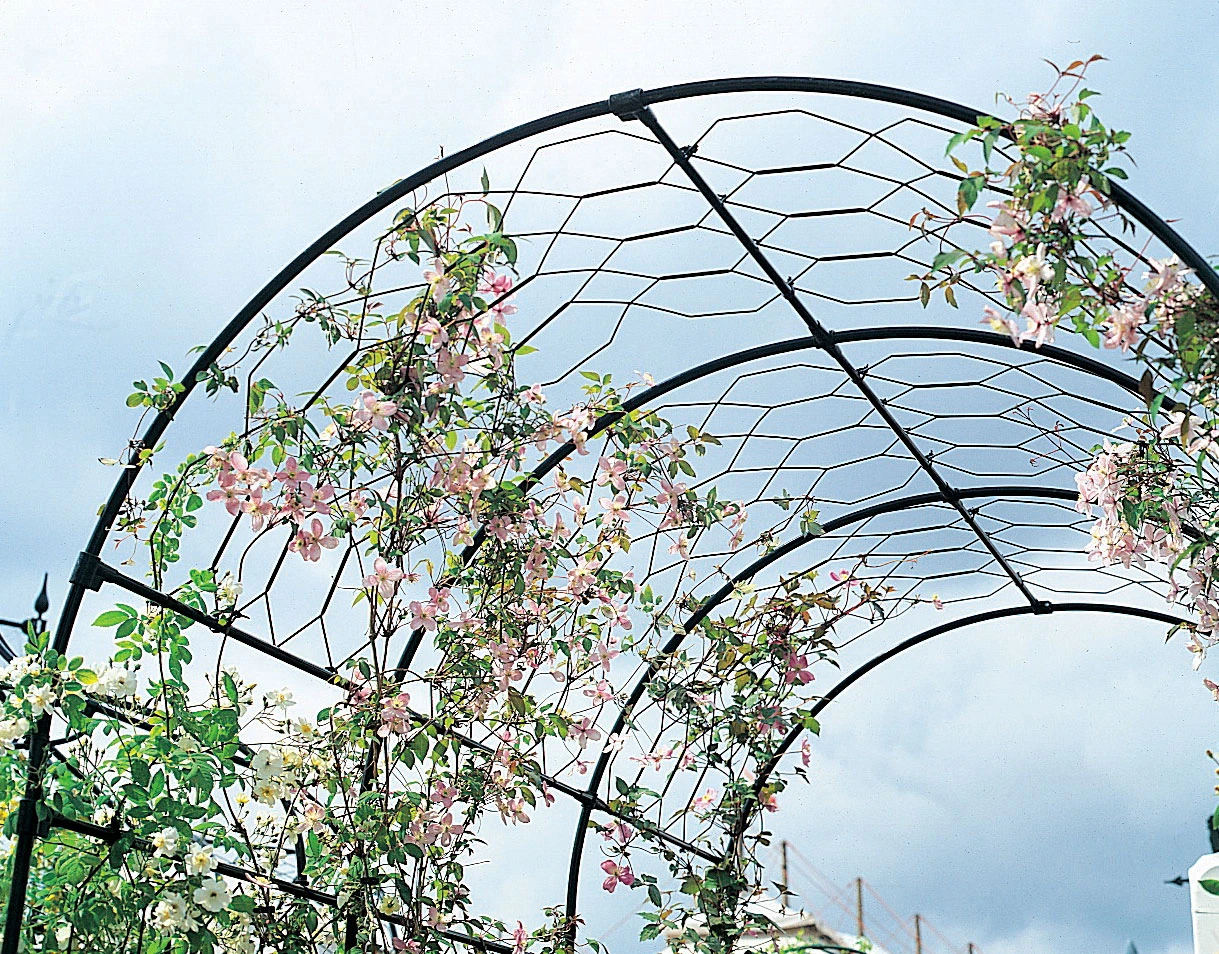

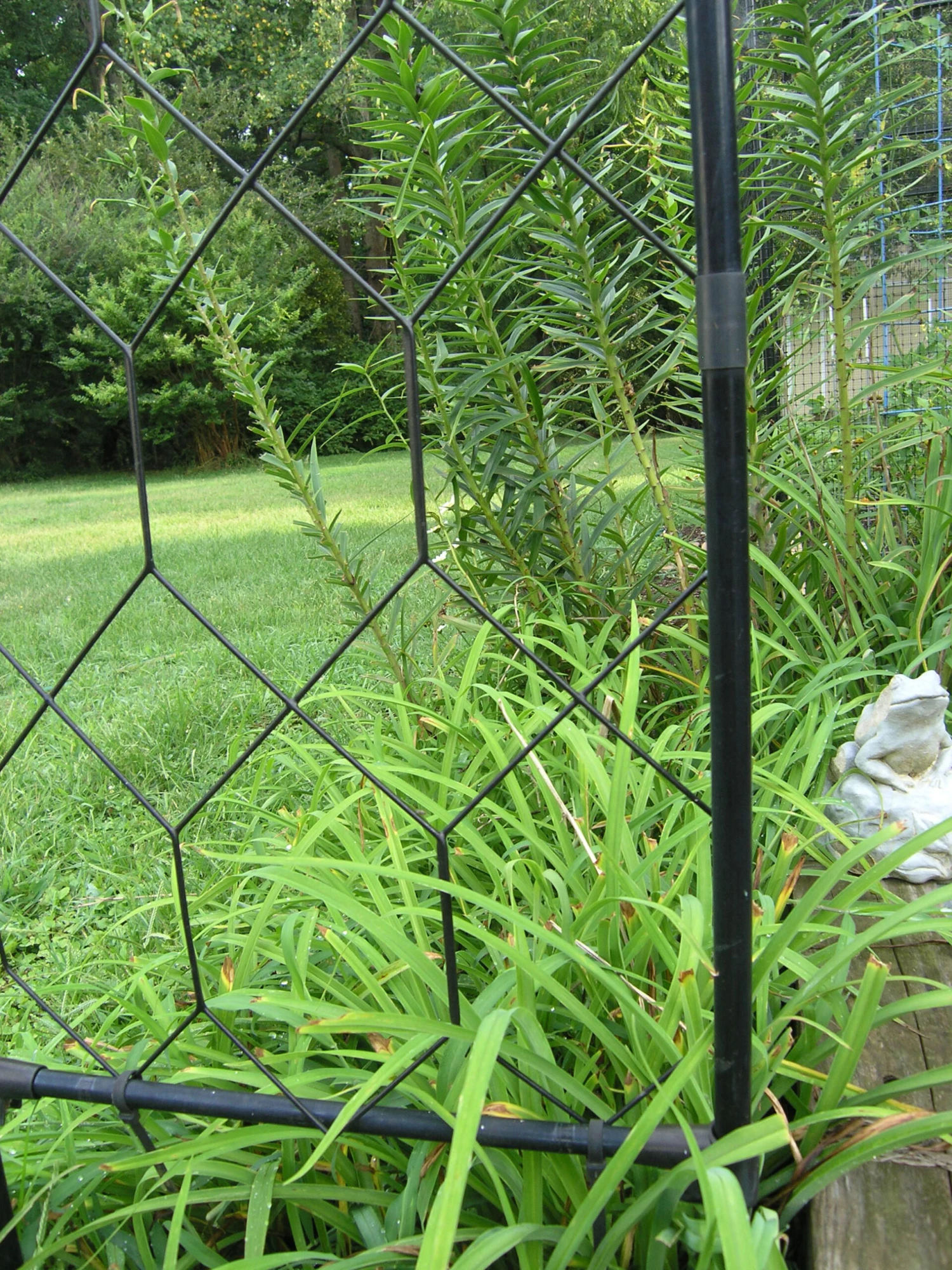

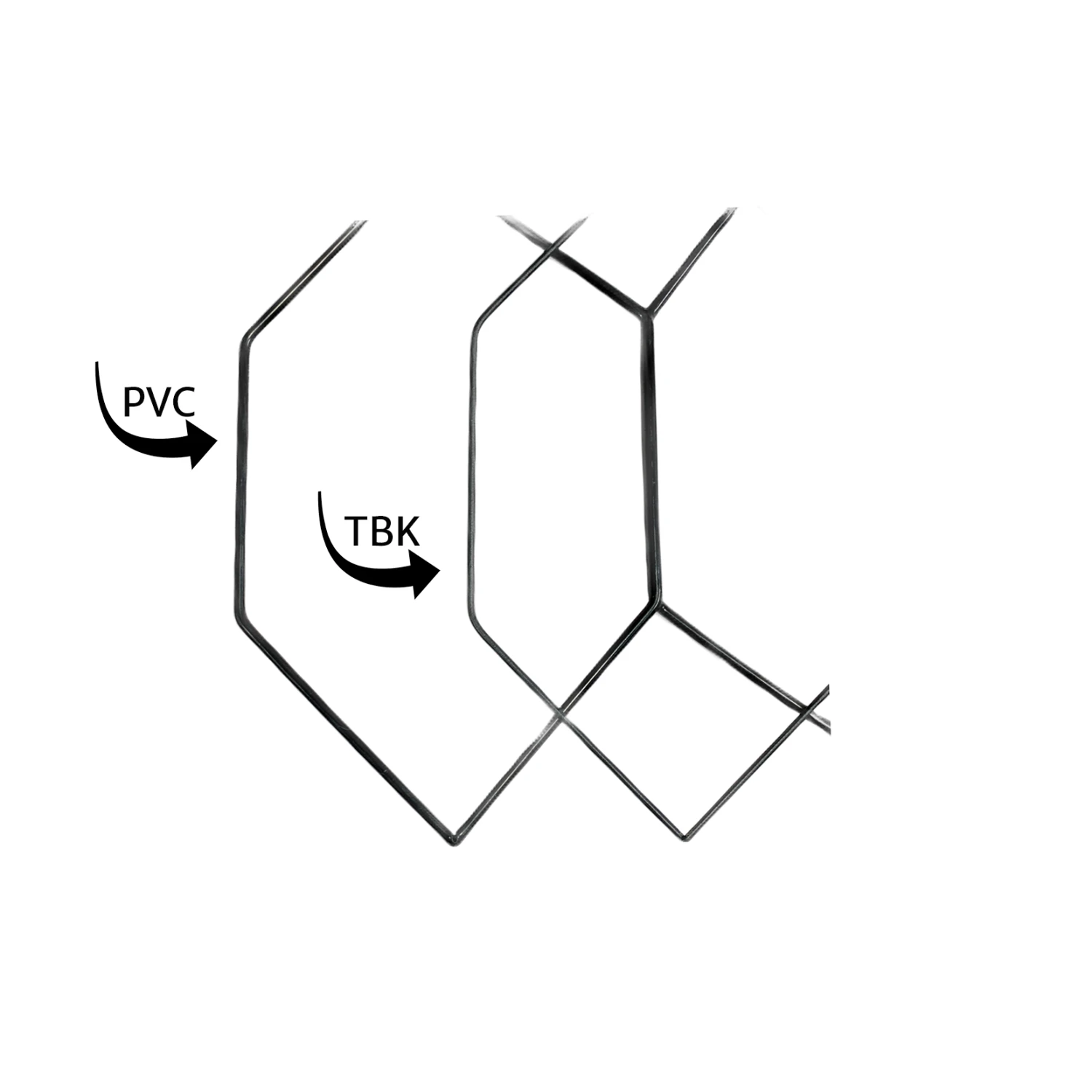

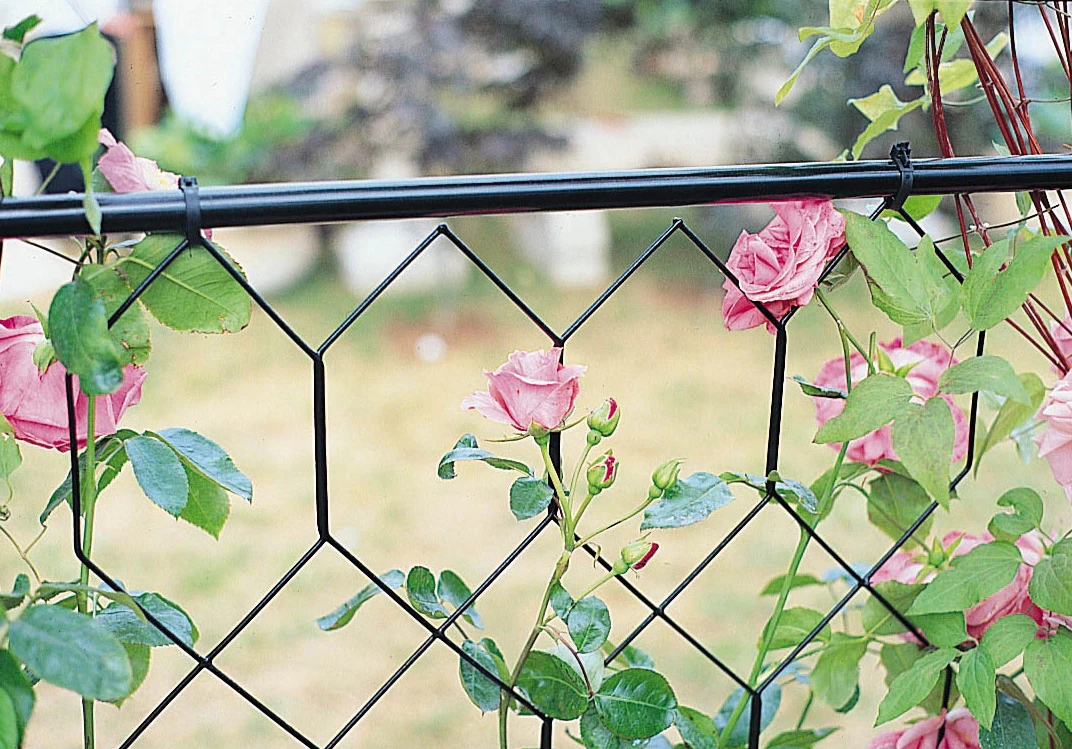

We offer two different options for the lattice kits that fit the Agriframes garden structures.  Each offering is made from strong mild steel and either powder coated with the Agriframes TBK finish or thickly coated in PVC.  Each style will come with the required cable ties to attach lattice to your chosen structure.

Arches

		Arch Width	Lattice Cells	Qty	Lattice Cells	Qty
Kit # for York/Round Arch Style
70934	York / Round	4′, 5′	4 x 3	4
70910	York / Round	5′ CX, 6′	4 x 4	4
70901	York / Round	7′, 8′, 9′, 10′	4 x 4	2	5 x 4	2
70978	York / Round	12′	4 x 4	4	3 x 4	2
Kit # for Monet Arch Style
70934	Monet	4′, 5′	4 x 3	4
70901	Monet	6′, 7′	4 x 4	2	5 x 4	2
70942	Monet	5′ CX	5 x 4	2	3 x 4	2
70908	Monet	8′, 9′, 10′	5 x 4	4
70939	Monet	12′	5 x 4	2	3 x 4	4
Kit # for Gothic Arch Style
70934	Gothic	4′, 5′	4 x 3	4
70901	Gothic	6′	4 x 4	2	5 x 4	2
70908	Gothic	7′, 8′, 9′, 10′	5 x 4	4
70939	Gothic	12′	5 x 4	2	3 x 4	4
Kit # for Wall Arch Style
70915	Wall	4′, 5′	4 x 3	3
70977	Wall	6′, 7′	4 x 4	2	5 x 4	1
70979	Wall	8′, 9′, 10′, 12′	5 x 4	3
You only need order one kit # per structure.   For instance, a York 4′ arch is kit # 70934 but contains 4 lattice sheets.

Pergolas

Style	Kit #	Structure	Width	Lattice Cells	Qty	Lattice Cells	Qty
Monet	70904	Base Unit	4′,5′	4 x 5	8
	70905	Extension	4′, 5′	4 x 5	4
	70906	Base Unit	6′, 7′	4 x 5	4	5 x 5	4
	70907	Extension	6′, 7′	4 x 5	3	5 x 5	2
	70968	Base Unit	8′, 9′, 10′			5 x 5	8
	70900	Extension	8′, 9′, 10′			5 x 5	4
Gothic	70904	Base Unit	4′, 5′	4 x 5	8
	70905	Extension	4′, 5′	4 x 5	4
	70906	Base Unit	6′	4 x 5	4	5 x 5	4
	70907	Extension	6′	4 x 5	3	5 x 5	2
	70968	Base Unit	7′, 8′, 9′, 10′			5 x 5	8
	70900	Extension	7′, 8′, 9′, 10′			5 x 5	4
York/ Round	70904	Base Unit	4′, 5′, 6′	4 x 5	8
	70905	Extension	4′, 5′, 6′	4 x 5	4
	70906	Base Unit	7′, 8′, 9′, 10′	4 x 5	4	5 x 5	4
	70907	Extension	7′, 8′, 9′, 10′	4 x 5	3	5 x 5	2
Wall	70929	Base Unit	6′, 7′, 8′	4 x 5	2	5 x 5	2
	70930	Extension	6′, 7′, 8′	4 x 5	2	5 x 5	1



Bowers

		Bower Width	Lattice Cells	Qty	Lattice Cells	Qty	Lattice Cells	Qty
Kit # for Sussex Bower
70949		5′, 6′	4 x 3	8	4 x 4	4
70948		7′, 8′	4 x 4	8	4 x 3	4
Kit # for Harrogate Bower
70976		6′	4 x 4	3	5 x 4	1	4 x 3	2
70920		7′	4 x 4	8
70006		8′	5 x 4	1	4 x 3	2	4 x 4	6
Kit # for York Bower
70958		5′, 6′	4 x 3	5	5 x 3	5
70988		8′	4 x 4	7	5 x 4
Kit # for Gothic Bower
70958		5′, 6′	4 x 3	5	5 x 3	5
70988		8′	4 x 4	7	5 x 4
You only need order one kit # per structure.



Gazebos

Gazebo Item #	Gazebo Diameter	Lattice Kit #	Lattice Cells	Qty	Lattice Cells	Qty
40528	Gothic 7’10”	70914			5 x 4	8
40520	Gothic 10′	70914			5 x 4	8
40522 & 50522	Gothic 12′	70914			5 x 4	8
30546 & 30526	York 6′ & Gothic 6′	70956	4 x 3	8
40548	York 7’10”	70912	4 x 4	4	5 x 4	4
40540	York 10′	70914			5 x 4	8
40542 & 50542	York 12′	70914			5 x 4	8
